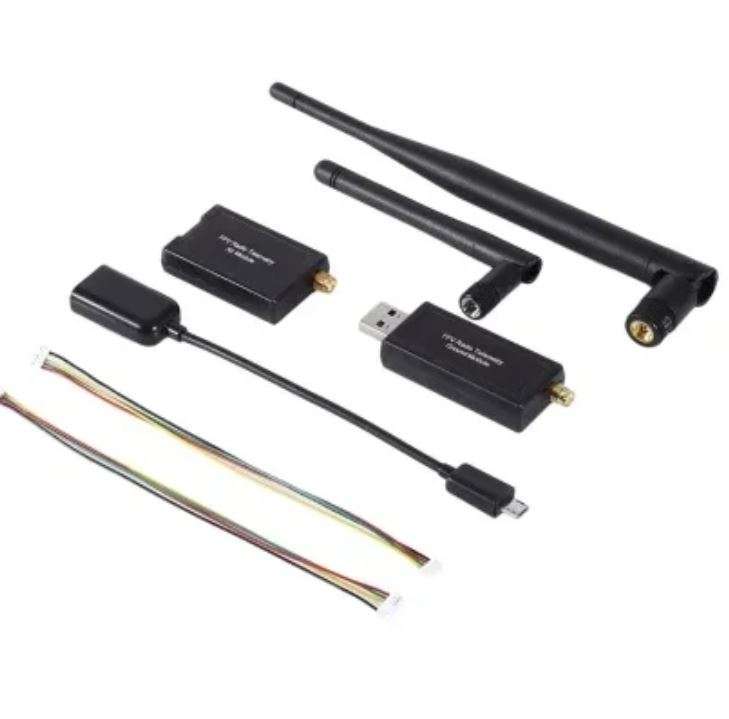

3DR Radio Telemetry 433MHz 500mW for PIXHAWK and APM

This 3DR Radio Telemetry 433MHz 500mW Set allows you to link to a flight controller to a USB or UART equipped device such as a computer, laptop or tablet supporting a USB connection (OTG). This radio telemetry set has separate Air & Ground module. Its transceivers can use UART or USB connections and support both modes. The Radio set lets you see live data, such as live GPS position overlaid on a map, system voltage, heading, waypoint navigation and much more. Using open source MAVlink based ground station software, you can even fly your aircraft with a joystick via your computer and update settings live! Or just use it for your DIY projects that need a wireless Serial interface. This kit offers a great low price, longer range, and superior performance. The system utilizes the 433MHz band and provides a full-duplex link using Hope RF’s HM-TRP modules running custom, open source, firmware. Note: The reference to APM refers to the ArduPilot project, a family of open source autopilots based on the Arduino open-source computing platform, developed by 3DR and the open source community. It consists of a choice of ArduPilot Mega (APM) electronics and a range of free software versions for different vehicles and is governed by an open source creative commons license. Features : MAVLink protocol framing status documents Frequency modulation and Spread Spectrum (FHSS) Self-adaption to time-division multiplexing Support LBT and AFA Configurable duty cycle Built-in error-correcting code(up to 25% data bit error) AT command configure data transmission RT command remote control data transmission Interchangeable air and ground 433MHz modules Micro-USB port 6-position Molex connector 500 mW maximum output power (adjustable) SMA connector 2-way full-duplex communication through adaptive TDM UART interface Transparent serial link Open-source SIK firmware Configurable through *Mission Planner and *APM Planner Based on the HM-TRP wireless module, with Si1000 8051 microcontroller and Si4432 wireless module Package Includes : 1 x Telemetry Air Module. 1 x Telemetry Ground Module. 2 x 2.5dbi Antenna. 1 x Micro USB OTG cable. 1 x DF13 cable. 1 x Extra 5-pin connector for both cables Swapping to connect to APM FC.
